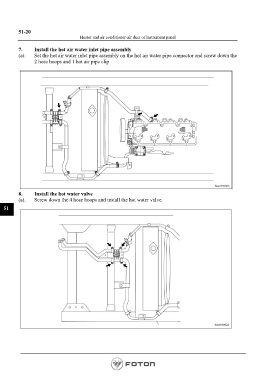

51-20
Heater and air conditioner-air duct of instrument panel
7. Install the hot air water inlet pipe assembly
(a). Set the hot air water inlet pipe assembly on the hot air water pipe connector and screw down the
2 hose hoops and 1 hot air pipe clip
8. Install the hot water valve
(a). Screw down the 4 hose hoops and install the hot water valve.
51
