Page 1195 - Workshop Manual - Aumark (BJ1051)
P. 1195
53-19
Battery-Battery
2. Measure the specific gravity of electrolyte

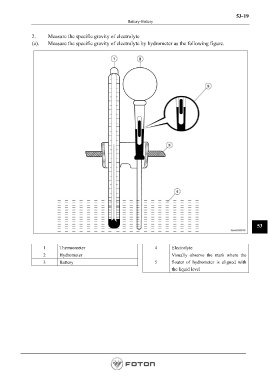

(a). Measure the specific gravity of electrolyte by hydrometer as the following figure.
53
1 Thermometer 4 Electrolyte
2 Hydrometer Visually observe the mark where the
3 Battery 5 floater of hydrometer is aligned with
the liquid level
Page 1195
