54-37

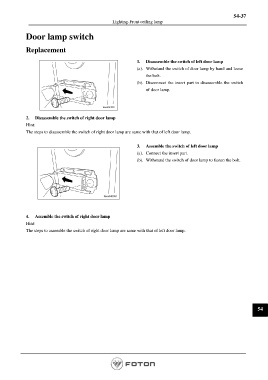

Lighting-Front ceiling lamp
Door lamp switch
Replacement
1. Disassemble the switch of left door lamp
(a). Withstand the switch of door lamp by hand and loose
the bolt.
(b). Disconnect the insert part to disassemble the switch
of door lamp.
2. Disassemble the switch of right door lamp
Hint:
The steps to disassemble the switch of right door lamp are same with that of left door lamp.
3. Assemble the switch of left door lamp
(a). Connect the insert part.
(b). Withstand the switch of door lamp to fasten the bolt.
4. Assemble the switch of right door lamp
Hint:
The steps to assemble the switch of right door lamp are same with that of left door lamp.
