P. 1234
54-34

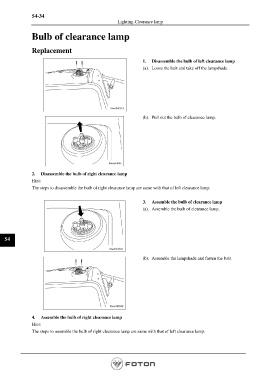

Lighting-Clearance lamp
Bulb of clearance lamp
Replacement
1. Disassemble the bulb of left clearance lamp
(a). Loose the bolt and take off the lampshade.
(b). Pull out the bulb of clearance lamp.
2. Disassemble the bulb of right clearance lamp
Hint:
The steps to disassemble the bulb of right clearance lamp are same with that of left clearance lamp.
3. Assemble the bulb of clearance lamp
(a). Assemble the bulb of clearance lamp.
54
(b). Assemble the lampshade and fasten the bolt.
4. Assemble the bulb of right clearance lamp
Hint:
The steps to assemble the bulb of right clearance lamp are same with that of left clearance lamp.
