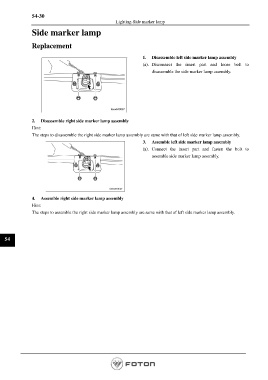

Page 1230 - Workshop Manual - Aumark (BJ1051)
P. 1230
54-30
Lighting-Side marker lamp
Side marker lamp
Replacement
1. Disassemble left side marker lamp assembly
(a). Disconnect the insert part and loose bolt to
disassemble the side marker lamp assembly.
2. Disassemble right side marker lamp assembly
Hint:
The steps to disassemble the right side marker lamp assembly are same with that of left side marker lamp assembly.
3. Assemble left side marker lamp assembly
(a). Connect the insert part and fasten the bolt to
assemble side marker lamp assembly.
4. Assemble right side marker lamp assembly
Hint:
The steps to assemble the right side marker lamp assembly are same with that of left side marker lamp assembly.
54
Page 1230
