P. 1228
54-28

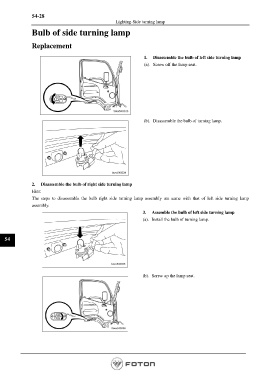

Lighting-Side turning lamp
Bulb of side turning lamp
Replacement
1. Disassemble the bulb of left side turning lamp
(a). Screw off the lamp seat.
(b). Disassemble the bulb of turning lamp.
2. Disassemble the bulb of right side turning lamp
Hint:
The steps to disassemble the bulb right side turning lamp assembly are same with that of left side turning lamp
assembly.
3. Assemble the bulb of left side turning lamp
(a). Install the bulb of turning lamp.
54
(b). Screw up the lamp seat.
