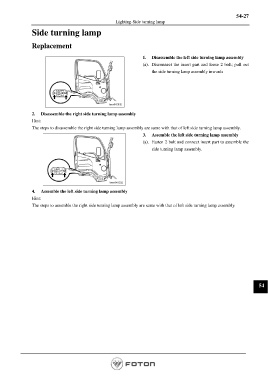

54-27
Lighting-Side turning lamp
Side turning lamp
Replacement
1. Disassemble the left side turning lamp assembly
(a). Disconnect the insert part and loose 2 bolt; pull out
the side turning lamp assembly inwards
2. Disassemble the right side turning lamp assembly
Hint:
The steps to disassemble the right side turning lamp assembly are same with that of left side turning lamp assembly.
3. Assemble the left side turning lamp assembly
(a). Fasten 2 bolt and connect insert part to assemble the
side turning lamp assembly.
4. Assemble the left side turning lamp assembly
Hint:
The steps to assemble the right side turning lamp assembly are same with that of left side turning lamp assembly.
54
