P. 1232
54-32
Lighting-Side marker lamp

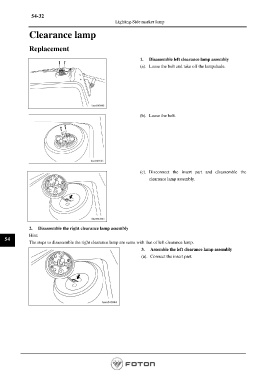

Clearance lamp
Replacement
1. Disassemble left clearance lamp assembly
(a). Loose the bolt and take off the lampshade.
(b). Loose the bolt.
(c). Disconnect the insert part and disassemble the
clearance lamp assembly.
2. Disassemble the right clearance lamp assembly
Hint:
54
The steps to disassemble the right clearance lamp are same with that of left clearance lamp.
3. Assemble the left clearance lamp assembly
(a). Connect the insert part.
