54-35
Lighting-Bulb of clearance lamp

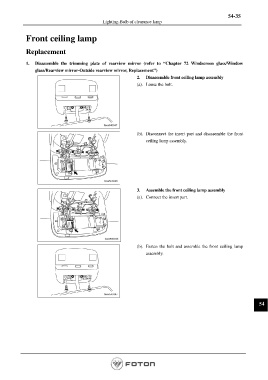

Front ceiling lamp
Replacement
1. Disassemble the trimming plate of rearview mirror (refer to “Chapter 72 Windscreen glass/Window
glass/Rearview mirror-Outside rearview mirror, Replacement”)
2. Disassemble front ceiling lamp assembly
(a). Loose the bolt.
(b). Disconnect the insert part and disassemble the front
ceiling lamp assembly.
3. Assemble the front ceiling lamp assembly
(a). Connect the insert part.
(b). Fasten the bolt and assemble the front ceiling lamp
assembly.
