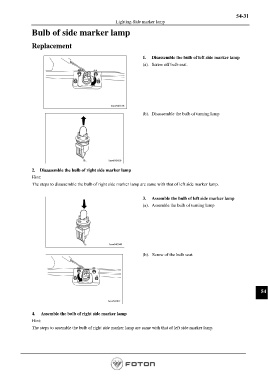

Page 1231 - Workshop Manual - Aumark (BJ1051)
P. 1231
54-31
Lighting-Side marker lamp
Bulb of side marker lamp
Replacement
1. Disassemble the bulb of left side marker lamp
(a). Screw off bulb seat.
(b). Disassemble the bulb of turning lamp
2. Disassemble the bulb of right side marker lamp
Hint:
The steps to disassemble the bulb of right side marker lamp are same with that of left side marker lamp.
3. Assemble the bulb of left side marker lamp
(a). Assemble the bulb of turning lamp
(b). Screw of the bulb seat.
54
4. Assemble the bulb of right side marker lamp
Hint:
The steps to assemble the bulb of right side marker lamp are same with that of left side marker lamp.
Page 1231
