54-23
Lighting-Rear combined lamp

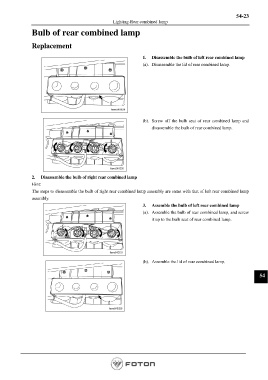

Bulb of rear combined lamp

Replacement

1. Disassemble the bulb of left rear combined lamp
(a). Disassemble the lid of rear combined lamp.

(b). Screw off the bulb seat of rear combined lamp and
disassemble the bulb of rear combined lamp.

2. Disassemble the bulb of right rear combined lamp
Hint:
The steps to disassemble the bulb of right rear combined lamp assembly are same with that of left rear combined lamp
assembly.
3. Assemble the bulb of left rear combined lamp
(a). Assemble the bulb of rear combined lamp, and screw
it up to the bulb seat of rear combined lamp.

(b). Assemble the lid of rear combined lamp.

54
