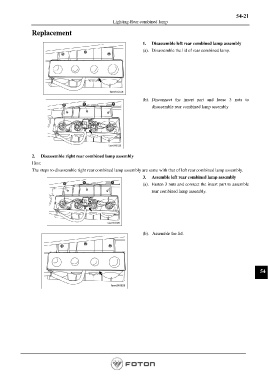

54-21
Lighting-Rear combined lamp
Replacement
1. Disassemble left rear combined lamp assembly
(a). Disassemble the lid of rear combined lamp.
(b). Disconnect the insert part and loose 3 nuts to
disassemble rear combined lamp assembly
2. Disassemble right rear combined lamp assembly
Hint:
The steps to disassemble right rear combined lamp assembly are same with that of left rear combined lamp assembly.
3. Assemble left rear combined lamp assembly
(a). Fasten 3 nuts and connect the insert part to assemble
rear combined lamp assembly.
(b). Assemble the lid.
54
