P. 1219

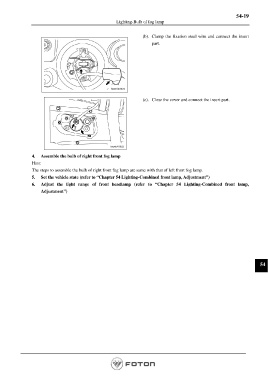

54-19
Lighting-Bulb of fog lamp
(b). Clamp the fixation steel wire and connect the insert
part.
(c). Close the cover and connect the insert part.
4. Assemble the bulb of right front fog lamp
Hint:
The steps to assemble the bulb of right front fog lamp are same with that of left front fog lamp.
5. Set the vehicle state (refer to “Chapter 54 Lighting-Combined front lamp, Adjustment”)
6. Adjust the light range of front headlamp (refer to “Chapter 54 Lighting-Combined front lamp,
Adjustment”)
54
