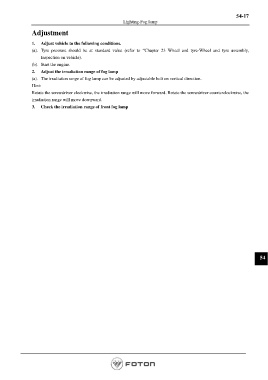

54-17
Lighting-Fog lamp
Adjustment
1. Adjust vehicle to the following conditions.
(a). Tyre pressure should be at standard value (refer to “Chapter 23 Wheel and tyre-Wheel and tyre assembly,
Inspection on vehicle).
(b). Start the engine.
2. Adjust the irradiation range of fog lamp
(a). The irradiation range of fog lamp can be adjusted by adjustable bolt on vertical direction.
Hint:
Rotate the screwdriver clockwise, the irradiation range will move forward. Rotate the screwdriver counterclockwise, the
irradiation range will move downward.
3. Check the irradiation range of front fog lamp
