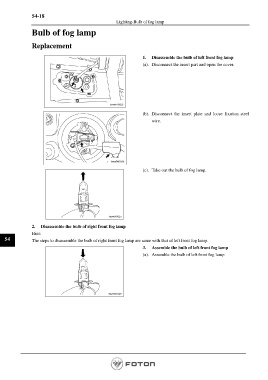

54-18
Lighting-Bulb of fog lamp

Bulb of fog lamp

Replacement

1. Disassemble the bulb of left front fog lamp
(a). Disconnect the insert part and open the cover.

(b). Disconnect the insert plate and loose fixation steel
wire.

(c). Take out the bulb of fog lamp.

2. Disassemble the bulb of right front fog lamp
Hint:
54 The steps to disassemble the bulb of right front fog lamp are same with that of left front fog lamp.

3. Assemble the bulb of left front fog lamp
(a). Assemble the bulb of left front fog lamp
