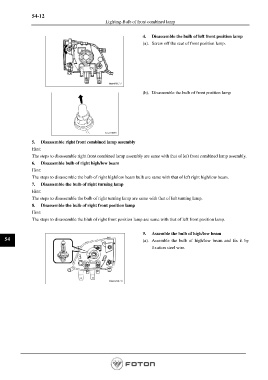

54-12
Lighting-Bulb of front combined lamp

4. Disassemble the bulb of left front position lamp
(a). Screw off the seat of front position lamp.

(b). Disassemble the bulb of front position lamp

5. Disassemble right front combined lamp assembly
Hint:
The steps to disassemble right front combined lamp assembly are same with that of left front combined lamp assembly.
6. Disassemble bulb of right high/low beam
Hint:
The steps to disassemble the bulb of right high/low beam bulb are same with that of left right high/low beam.
7. Disassemble the bulb of right turning lamp
Hint:
The steps to disassemble the bulb of right turning lamp are same with that of left turning lamp.
8. Disassemble the bulb of right front position lamp
Hint:
The steps to disassemble the blub of right front position lamp are same with that of left front position lamp.

9. Assemble the bulb of high/low beam
54 (a). Assemble the bulb of high/low beam and fix it by

fixation steel wire.
