54-11

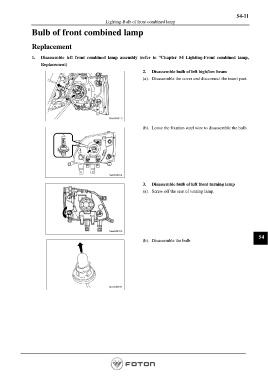

Lighting-Bulb of front combined lamp
Bulb of front combined lamp
Replacement
1. Disassemble left front combined lamp assembly (refer to “Chapter 54 Lighting-Front combined lamp,
Replacement)
2. Disassemble bulb of left high/low beam
(a). Disassemble the cover and disconnect the insert part.
(b). Loose the fixation steel wire to disassemble the bulb.
3. Disassemble bulb of left front turning lamp
(a). Screw off the seat of turning lamp.
54
(b). Disassemble the bulb.
