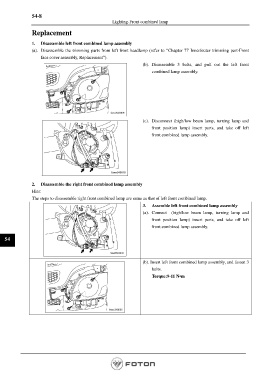

54-8
Lighting-Front combined lamp

Replacement

1. Disassemble left front combined lamp assembly
(a). Disassemble the trimming parts from left front headlamp (refer to “Chapter 77 Inner/outer trimming part-Front
face cover assembly, Replacement”).
(b). Disassemble 3 bolts, and pull out the left front
combined lamp assembly.

(c). Disconnect (high/low beam lamp, turning lamp and
front position lamp) insert parts, and take off left
front combined lamp assembly.

2. Disassemble the right front combined lamp assembly
Hint:
The steps to disassemble right front combined lamp are same as that of left front combined lamp.
3. Assemble left front combined lamp assembly
(a). Connect (high/low beam lamp, turning lamp and
front position lamp) insert parts, and take off left
front combined lamp assembly.

54

(b). Insert left front combined lamp assembly, and fasten 3
bolts.
Torque:9-11 N•m
