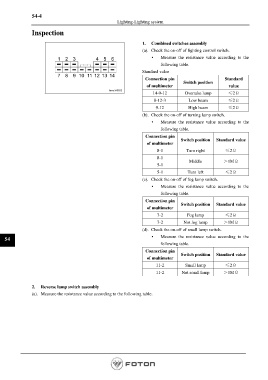

54-4
Lighting-Lighting system

Inspection

1. Combined switches assembly
(a). Check the on-off of lighting control switch.
• Measure the resistance value according to the
following table.
Standard value
Connection pin Standard
Switch position
of multimeter value
14-9-12 Overtake lamp ≤2Ω
8-12-3 Low beam ≤2Ω
9-12 High beam ≤2Ω
(b). Check the on-off of turning lamp switch.
• Measure the resistance value according to the
following table.
Connection pin
Switch position Standard value
of multimeter
8-1 Turn right ≤2Ω
8-1
Middle ＞1MΩ
5-1
5-1 Turn left ≤2Ω
(c). Check the on-off of fog lamp switch.
• Measure the resistance value according to the
following table.
Connection pin
Switch position Standard value
of multimeter
7-2 Fog lamp ≤2Ω
7-2 Not fog lamp ＞1MΩ
(d). Check the on-off of small lamp switch.
54 • Measure the resistance value according to the
following table.
Connection pin
Switch position Standard value
of multimeter
11-2 Small lamp ≤2Ω
11-2 Not small lamp ＞1MΩ

2. Reverse lamp switch assembly
(a). Measure the resistance value according to the following table.
