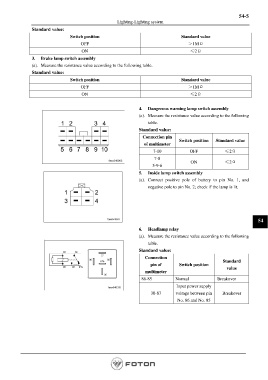

Page 1205 - Workshop Manual - Aumark (BJ1051)

54-5
Lighting-Lighting system
Standard value:
Switch position Standard value
OFF ＞1MΩ
ON ≤2Ω

3. Brake lamp switch assembly
(a). Measure the resistance value according to the following table.
Standard value:
Switch position Standard value
OFF ＞1MΩ
ON ≤2Ω

4. Dangerous warning lamp switch assembly
(a). Measure the resistance value according to the following
table.
Standard value:
Connection pin
Switch position Standard value
of multimeter
7-10 OFF ≤2Ω
7-8
5-9-6 ON ≤2Ω

5. Inside lamp switch assembly
(a). Connect positive pole of battery to pin No. 1, and
negative pole to pin No. 2; check if the lamp is lit.

54
6. Headlamp relay
(a). Measure the resistance value according to the following
table.
Standard value:
Connection
Standard
pin of Switch position
value
multimeter
86-85 Normal Breakover
Input power supply

30-87 voltage between pin Breakover
No. 86 and No. 85

Page 1205
