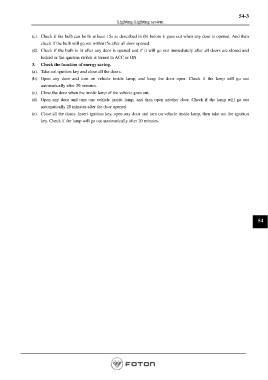

Page 1203 - Workshop Manual - Aumark (BJ1051)

54-3
Lighting-Lighting system

(c). Check if the bulb can be lit at least 15s as described in (b) before it goes out when any door is opened. And then
check if the bulb will go out within15s after all door opened.
(d). Check if the bulb is lit after any door is opened and if it will go out immediately after all doors are closed and
locked or the ignition switch is turned to ACC or ON
3. Check the function of energy saving.
(a). Take out ignition key and close all the doors.
(b). Open any door and turn on vehicle inside lamp, and keep the door open. Check if the lamp will go out
automatically after 20 minutes.
(c). Close the door when the inside lamp of the vehicle goes out.
(d). Open any door and turn one vehicle inside lamp, and then open another door. Check if the lamp will go out
automatically 20 minutes after the door opened.
(e). Close all the doors. Insert ignition key, open any door and turn on vehicle inside lamp, then take out the ignition
key. Check if the lamp will go out automatically after 20 minutes.

54

Page 1203
