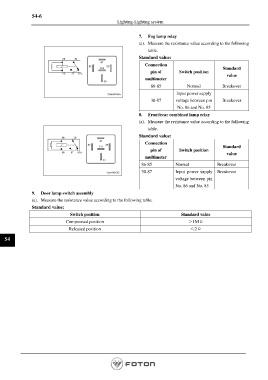

54-6
Lighting-Lighting system

7. Fog lamp relay
(a). Measure the resistance value according to the following
table.
Standard value:
Connection
Standard
pin of Switch position
value
multimeter
86-85 Normal Breakover
Input power supply

30-87 voltage between pin Breakover
No. 86 and No. 85

8. Front/rear combined lamp relay
(a). Measure the resistance value according to the following
table.
Standard value:
Connection
Standard
pin of Switch position
value
multimeter
86-85 Normal Breakover
30-87 Input power supply Breakover

voltage between pin
No. 86 and No. 85

9. Door lamp switch assembly
(a). Measure the resistance value according to the following table.
Standard value:
Switch position Standard value
Compressed position ＞1MΩ
Released position ≤2Ω
