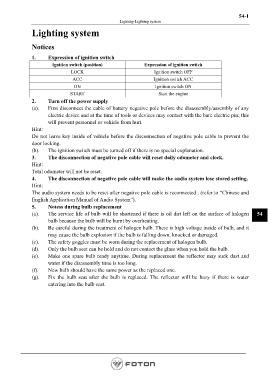

Page 1201 - Workshop Manual - Aumark (BJ1051)

54-1
Lighting-Lighting system

Lighting system

Notices

1. Expression of ignition switch
Ignition switch (position) Expression of ignition switch
LOCK Ignition switch OFF
ACC Ignition switch ACC
ON Ignition switch ON
START Start the engine
2. Turn off the power supply
(a). First disconnect the cable of battery negative pole before the disassembly/assembly of any
electric device and at the time of tools or devices may contact with the bare electric pin; this
will prevent personnel or vehicle from hurt.
Hint:
Do not leave key inside of vehicle before the disconnection of negative pole cable to prevent the
door locking.
(b). The ignition switch must be turned off if there is no special explanation.
3. The disconnection of negative pole cable will reset daily odometer and clock.
Hint:
Total odometer will not be reset.
4. The disconnection of negative pole cable will make the audio system lose stored setting.
Hint:
The audio system needs to be reset after negative pole cable is reconnected . (refer to “Chinese and
English Application Manual of Audio System”).
5. Notess during bulb replacement
(a). The service life of bulb will be shortened if there is oil dirt left on the surface of halogen 54
bulb because the bulb will be burnt by overheating.
(b). Be careful during the treatment of halogen bulb. There is high voltage inside of bulb, and it
may cause the bulb explosion if the bulb is falling down, knocked or damaged.
(c). The safety goggles must be worn during the replacement of halogen bulb.
(d). Only the bulb seat can be hold and do not contact the glass when you hold the bulb.
(e). Make one spare bulb ready anytime. During replacement the reflector may suck dust and
water if the disassembly time is too long.
(f). New bulb should have the same power as the replaced one.
(g). Fix the bulb seat after the bulb is replaced. The reflector will be hazy if there is water
entering into the bulb seat.
