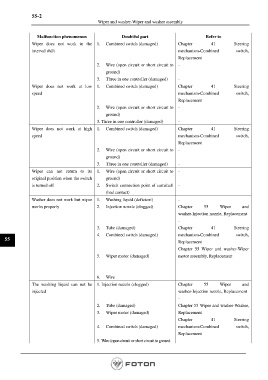

Page 1244 - Workshop Manual - Aumark (BJ1051)

55-2
Wiper and washer-Wiper and washer assembly

Malfunction phenomenon Doubtful part Refer to
Wiper does not work in the 1. Combined switch (damaged) Chapter 41 Steering
interval shift mechanism-Combined switch,
Replacement
2. Wire (open circuit or short circuit to -
ground)
3. Three in one controller (damaged) -
Wiper does not work at low 1. Combined switch (damaged) Chapter 41 Steering
speed mechanism-Combined switch,
Replacement
2. Wire (open circuit or short circuit to -
ground)
3. Three in one controller (damaged) -
Wiper does not work at high 1. Combined switch (damaged) Chapter 41 Steering
speed mechanism-Combined switch,
Replacement
2. Wire (open circuit or short circuit to -
ground)
3. Three in one controller (damaged) -
Wiper can not return to its 1. Wire (open circuit or short circuit to -
original position when the switch ground)
is turned off 2. Switch connection point of camshaft -
(bad contact)

Washer does not work but wiper 1. Washing liquid (deficient) -
works properly 2. Injection nozzle (clogged) Chapter 55 Wiper and
washer-Injection nozzle, Replacement
-
3. Tube (damaged) Chapter 41 Steering
4. Combined switch (damaged) mechanism-Combined switch,
55
Replacement
Chapter 55 Wiper and washer-Wiper
5. Wiper motor (damaged) motor assembly, Replacement

6. Wire
The washing liquid can not be 1. Injection nozzle (clogged) Chapter 55 Wiper and
injected washer-Injection nozzle, Replacement
-
2. Tube (damaged) Chapter 55 Wiper and washer-Washer,
3. Wiper motor (damaged) Replacement
Chapter 41 Steering
4. Combined switch (damaged) mechanism-Combined switch,
Replacement
5. Wire (open circuit or short circuit to ground

Page 1244
