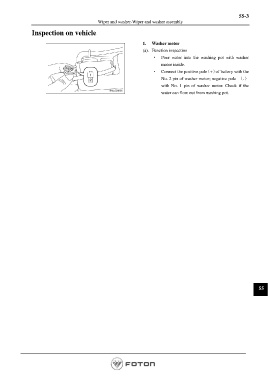

Page 1245 - Workshop Manual - Aumark (BJ1051)
P. 1245
55-3
Wiper and washer-Wiper and washer assembly
Inspection on vehicle
1. Washer motor
(a). Function inspection
· Pour water into the washing pot with washer
motor inside.
· Connect the positive pole（+）of battery with the
No. 2 pin of washer motor; negative pole （-）
with No. 1 pin of washer motor. Check if the
water can flow out from washing pot.
55
Page 1245
