55-5

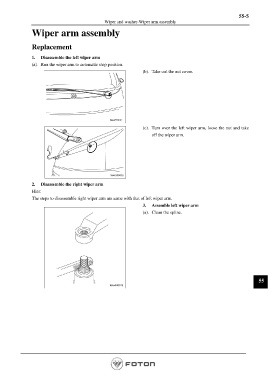

Wiper and washer-Wiper arm assembly

Wiper arm assembly

Replacement

1. Disassemble the left wiper arm
(a). Run the wiper arm to automatic stop position.
(b). Take out the nut cover.

(c). Turn over the left wiper arm, loose the nut and take
off the wiper arm.

2. Disassemble the right wiper arm
Hint:
The steps to disassemble right wiper arm are same with that of left wiper arm.
3. Assemble left wiper arm
(a). Clean the spline.

55
