55-7
Wiper and washer-Blade of wiper arm

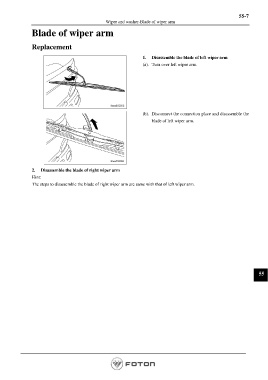

Blade of wiper arm
Replacement
1. Disassemble the blade of left wiper arm
(a). Turn over left wiper arm.
(b). Disconnect the connection place and disassemble the
blade of left wiper arm.
2. Disassemble the blade of right wiper arm
Hint:
The steps to disassemble the blade of right wiper arm are same with that of left wiper arm.
