Page 1253 - Workshop Manual - Aumark (BJ1051)
P. 1253
55-11

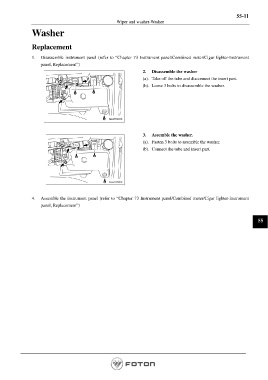

Wiper and washer-Washer
Washer
Replacement
1. Disassemble instrument panel (refer to “Chapter 73 Instrument panel/Combined meter/Cigar lighter-Instrument
panel, Replacement”)
2. Disassemble the washer
(a). Take off the tube and disconnect the insert part.
(b). Loose 3 bolts to disassemble the washer.
3. Assemble the washer.
(a). Fasten 3 bolts to assemble the washer.
(b). Connect the tube and insert part.
4. Assemble the instrument panel (refer to “Chapter 73 Instrument panel/Combined meter/Cigar lighter-Instrument
panel, Replacement”)
55
Page 1253
