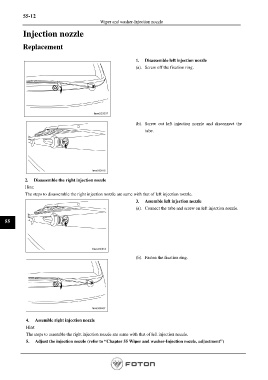

55-12
Wiper and washer-Injection nozzle
Injection nozzle
Replacement
1. Disassemble left injection nozzle
(a). Screw off the fixation ring.
(b). Screw out left injection nozzle and disconnect the
tube.
2. Disassemble the right injection nozzle
Hint:
The steps to disassemble the right injection nozzle are same with that of left injection nozzle.
3. Assemble left injection nozzle
(a). Connect the tube and screw on left injection nozzle.
55
(b). Fasten the fixation ring.
4. Assemble right injection nozzle
Hint:
The steps to assemble the right injection nozzle are same with that of left injection nozzle.
5. Adjust the injection nozzle (refer to “Chapter 55 Wiper and washer-Injection nozzle, adjustment”)
