P. 1251
55-9

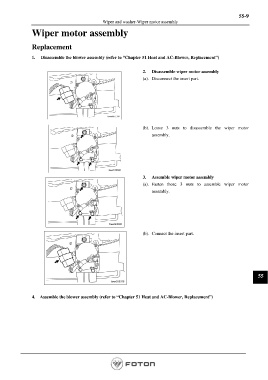

Wiper and washer-Wiper motor assembly
Wiper motor assembly
Replacement
1. Disassemble the blower assembly (refer to “Chapter 51 Heat and AC-Blower, Replacement”)
2. Disassemble wiper motor assembly
(a). Disconnect the insert part.
(b). Loose 3 nuts to disassemble the wiper motor
assembly.
3. Assemble wiper motor assembly
(a). Fasten those 3 nuts to assemble wiper motor
assembly.
(b). Connect the insert part.
55
4. Assemble the blower assembly (refer to “Chapter 51 Heat and AC-Blower, Replacement”)
