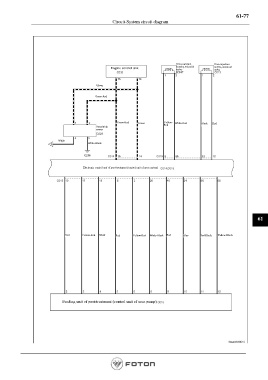

Circuit-System circuit diagram
Urea canister, Urea injection
valve
Engine control unit heating solenoid nozzle, solenoid
valve
Green
Green-Red
Green-Red Green Yellow- White-Red Black Red
Oxynitride Red
sensor
White
White-Black
Electronic control unit of post-treatment (control unit of urea system)
61
Red Yellow-Red Black Red Yellow-Red White-Black Red Blue Red-Black Yellow-Black
Feeding unit of post-treatment (control unit of urea pump)
Yellow-Red
