73-20

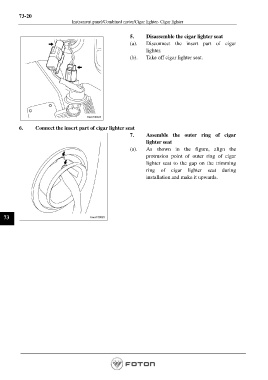

Instrument panel/Combined meter/Cigar lighter- Cigar lighter
5. Disassemble the cigar lighter seat
(a). Disconnect the insert part of cigar
lighter.
(b). Take off cigar lighter seat.
6. Connect the insert part of cigar lighter seat
7. Assemble the outer ring of cigar
lighter seat
(a). As shown in the figure, align the
protrusion point of outer ring of cigar
lighter seat to the gap on the trimming
ring of cigar lighter seat during
installation and make it upwards.
