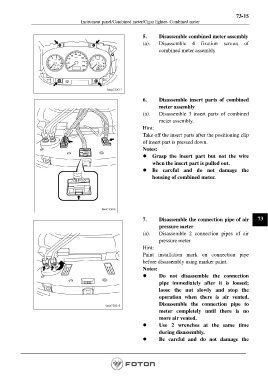

Page 1471 - Workshop Manual - Aumark (BJ1051)

73-15
Instrument panel/Combined meter/Cigar lighter- Combined meter

5. Disassemble combined meter assembly
(a). Disassemble 4 fixation screws of
combined meter assembly

6. Disassemble insert parts of combined
meter assembly
(a). Disassemble 3 insert parts of combined
meter assembly.
Hint:
Take off the insert parts after the positioning clip
of insert part is pressed down.
Notes:
z Grasp the insert part but not the wire
when the insert part is pulled out.
z Be careful and do not damage the
housing of combined meter.

7. Disassemble the connection pipe of air 73
pressure meter
(a). Disassemble 2 connection pipes of air
pressure meter
Hint:
Paint installation mark on connection pipe
before disassembly using marker paint.
Notes:
z Do not disassemble the connection
pipe immediately after it is loosed;
loose the nut slowly and stop the
operation when there is air vented.
Disassemble the connection pipe to
meter completely until there is no
more air vented.
z Use 2 wrenches at the same time
during disassembly.
z Be careful and do not damage the
housing of combined meter.
