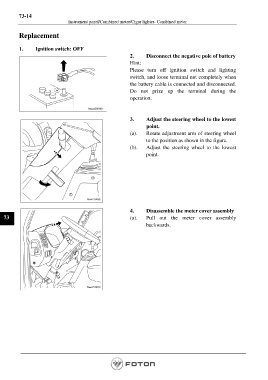

73-14
Instrument panel/Combined meter/Cigar lighter- Combined meter
Replacement
1. Ignition switch: OFF
2. Disconnect the negative pole of battery
Hint:
Please turn off ignition switch and lighting
switch, and loose terminal nut completely when
the battery cable is connected and disconnected.
Do not prize up the terminal during the
operation.
3. Adjust the steering wheel to the lowest
point.
(a). Rotate adjustment arm of steering wheel
to the position as shown in the figure.
(b). Adjust the steering wheel to the lowest
point.
4. Disassemble the meter cover assembly
73 (a). Pull out the meter cover assembly
backwards.
