P. 1465

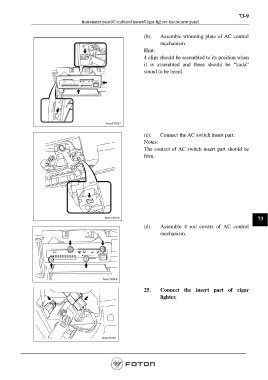

73-9
Instrument panel/Combined meter/Cigar lighter-Instrument panel
(b). Assemble trimming plate of AC control
mechanism.
Hint:
4 clips should be assembled to its position when
it is assembled and there should be “kada”
sound to be heard.
(c). Connect the AC switch insert part.
Notes:
The contact of AC switch insert part should be
firm.
73
(d). Assemble 4 rod covers of AC control
mechanism.
25. Connect the insert part of cigar
lighter.
