P. 1461
73-5
Instrument panel/Combined meter/Cigar lighter-Instrument panel

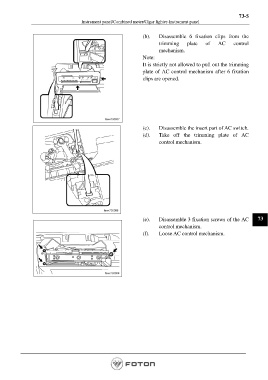

(b). Disassemble 6 fixation clips from the
trimming plate of AC control
mechanism.
Note:
It is strictly not allowed to pull out the trimming
plate of AC control mechanism after 6 fixation
clips are opened.
(c). Disassemble the insert part of AC switch.
(d). Take off the trimming plate of AC
control mechanism.
(e). Disassemble 3 fixation screws of the AC 73
control mechanism.
(f). Loose AC control mechanism.
