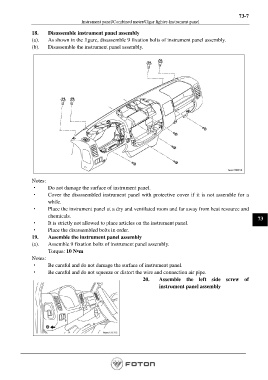

73-7
Instrument panel/Combined meter/Cigar lighter-Instrument panel

18. Disassemble instrument panel assembly
(a). As shown in the figure, disassemble 9 fixation bolts of instrument panel assembly.
(b). Disassemble the instrument panel assembly.

Notes:
· Do not damage the surface of instrument panel.
· Cover the disassembled instrument panel with protective cover if it is not assemble for a
while.
· Place the instrument panel at a dry and ventilated room and far away from heat resource and
chemicals. 73
· It is strictly not allowed to place articles on the instrument panel.
· Place the disassembled bolts in order.
19. Assemble the instrument panel assembly
(a). Assemble 9 fixation bolts of instrument panel assembly.
Torque: 10 N•m
Notes:
· Be careful and do not damage the surface of instrument panel.
· Be careful and do not squeeze or distort the wire and connection air pipe.
20. Assemble the left side screw of
instrument panel assembly
