P. 1464

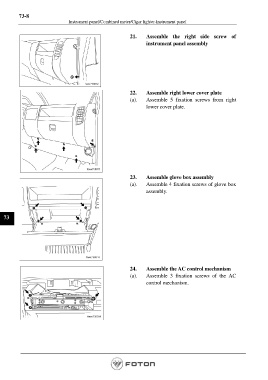

73-8
Instrument panel/Combined meter/Cigar lighter-Instrument panel
21. Assemble the right side screw of
instrument panel assembly
22. Assemble right lower cover plate
(a). Assemble 5 fixation screws from right
lower cover plate.
23. Assemble glove box assembly
(a). Assemble 4 fixation screws of glove box
assembly.
73
24. Assemble the AC control mechanism
(a). Assemble 3 fixation screws of the AC
control mechanism.
