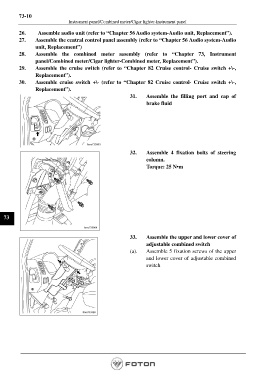

73-10
Instrument panel/Combined meter/Cigar lighter-Instrument panel

26. Assemble audio unit (refer to “Chapter 56 Audio system-Audio unit, Replacement”).
27. Assemble the central control panel assembly (refer to “Chapter 56 Audio system-Audio
unit, Replacement”)
28. Assemble the combined meter assembly (refer to “Chapter 73, Instrument
panel/Combined meter/Cigar lighter-Combined meter, Replacement”).
29. Assemble the cruise switch (refer to “Chapter 82 Cruise control- Cruise switch +\-,
Replacement”).
30. Assemble cruise switch +\- (refer to “Chapter 82 Cruise control- Cruise switch +\-,
Replacement”).
31. Assemble the filling port and cap of
brake fluid

32. Assemble 4 fixation bolts of steering
column.
Torque: 25 N•m

73

33. Assemble the upper and lower cover of
adjustable combined switch
(a). Assemble 5 fixation screws of the upper
and lower cover of adjustable combined
switch
