P. 1462
73-6
Instrument panel/Combined meter/Cigar lighter-Instrument panel

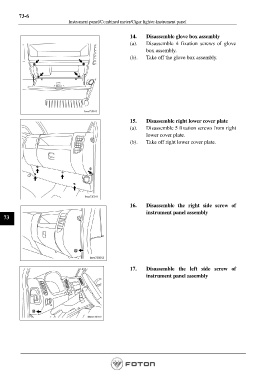

14. Disassemble glove box assembly
(a). Disassemble 4 fixation screws of glove
box assembly.
(b). Take off the glove box assembly.
15. Disassemble right lower cover plate
(a). Disassemble 5 fixation screws from right
lower cover plate.
(b). Take off right lower cover plate.
16. Disassemble the right side screw of
instrument panel assembly
73
17. Disassemble the left side screw of
instrument panel assembly
