73-3

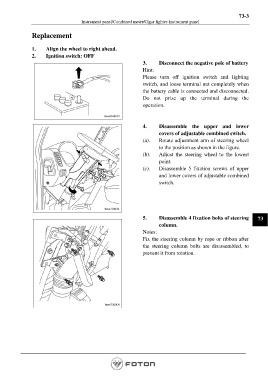

Instrument panel/Combined meter/Cigar lighter-Instrument panel

Replacement

1. Align the wheel to right ahead.
2. Ignition switch: OFF
3. Disconnect the negative pole of battery
Hint:
Please turn off ignition switch and lighting
switch, and loose terminal nut completely when
the battery cable is connected and disconnected.
Do not prize up the terminal during the
operation.

4. Disassemble the upper and lower
covers of adjustable combined switch.
(a). Rotate adjustment arm of steering wheel
to the position as shown in the figure.
(b). Adjust the steering wheel to the lowest
point.
(c). Disassemble 5 fixation screws of upper
and lower covers of adjustable combined
switch.

5. Disassemble 4 fixation bolts of steering 73
column.
Notes:
Fix the steering column by rope or ribbon after
the steering column bolts are disassembled, to
prevent it from rotation.
