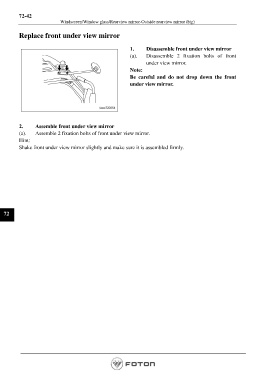

Page 1454 - Workshop Manual - Aumark (BJ1051)

72-42
Windscreen/Window glass/Rearview mirror-Outside rearview mirror (big)

Replace front under view mirror

1. Disassemble front under view mirror
(a). Disassemble 2 fixation bolts of front
under view mirror.
Note:
Be careful and do not drop down the front
under view mirror.

2. Assemble front under view mirror
(a). Assemble 2 fixation bolts of front under view mirror.
Hint:
Shake front under view mirror slightly and make sure it is assembled firmly.

72

Page 1454
