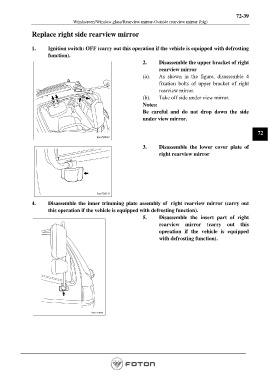

72-39
Windscreen/Window glass/Rearview mirror-Outside rearview mirror (big)

Replace right side rearview mirror

1. Ignition switch: OFF (carry out this operation if the vehicle is equipped with defrosting
function).
2. Disassemble the upper bracket of right
rearview mirror
(a). As shown in the figure, disassemble 4
fixation bolts of upper bracket of right
rearview mirror.
(b). Take off side under view mirror.
Notes:
Be careful and do not drop down the side
under view mirror.

72

3. Disassemble the lower cover plate of
right rearview mirror

4. Disassemble the inner trimming plate assembly of right rearview mirror (carry out
this operation if the vehicle is equipped with defrosting function).
5. Disassemble the insert part of right
rearview mirror (carry out this
operation if the vehicle is equipped
with defrosting function).
