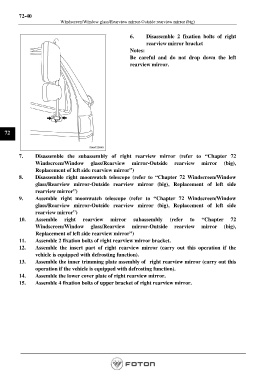

Windscreen/Window glass/Rearview mirror-Outside rearview mirror (big)

6. Disassemble 2 fixation bolts of right
rearview mirror bracket
Notes:
Be careful and do not drop down the left
rearview mirror.

72

7. Disassemble the subassembly of right rearview mirror (refer to “Chapter 72
Windscreen/Window glass/Rearview mirror-Outside rearview mirror (big),
Replacement of left side rearview mirror”)
8. Disassemble right moonwatch telescope (refer to “Chapter 72 Windscreen/Window
glass/Rearview mirror-Outside rearview mirror (big), Replacement of left side
rearview mirror”)
9. Assemble right moonwatch telescope (refer to “Chapter 72 Windscreen/Window
glass/Rearview mirror-Outside rearview mirror (big), Replacement of left side
rearview mirror”)
10. Assemble right rearview mirror subassembly (refer to “Chapter 72
Windscreen/Window glass/Rearview mirror-Outside rearview mirror (big),
Replacement of left side rearview mirror”)
11. Assemble 2 fixation bolts of right rearview mirror bracket.
12. Assemble the insert part of right rearview mirror (carry out this operation if the
vehicle is equipped with defrosting function).
13. Assemble the inner trimming plate assembly of right rearview mirror (carry out this
operation if the vehicle is equipped with defrosting function).
14. Assemble the lower cover plate of right rearview mirror.
15. Assemble 4 fixation bolts of upper bracket of right rearview mirror.
