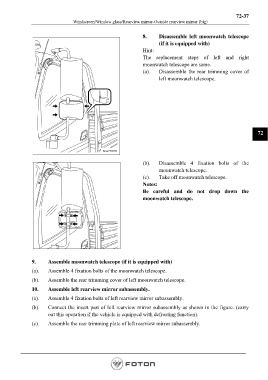

72-37
Windscreen/Window glass/Rearview mirror-Outside rearview mirror (big)
8. Disassemble left moonwatch telescope
(if it is equipped with)
Hint:
The replacement steps of left and right
moonwatch telescope are same.
(a). Disassemble the rear trimming cover of
left moonwatch telescope.
72
(b). Disassemble 4 fixation bolts of the
moonwatch telescope.
(c). Take off moonwatch telescope.
Notes:
Be careful and do not drop down the
moonwatch telescope.
9. Assemble moonwatch telescope (if it is equipped with)
(a). Assemble 4 fixation bolts of the moonwatch telescope.
(b). Assemble the rear trimming cover of left moonwatch telescope.
10. Assemble left rearview mirror subassembly.
(a). Assemble 4 fixation bolts of left rearview mirror subassembly.
(b). Connect the insert part of left rearview mirror subassembly as shown in the figure. (carry
out this operation if the vehicle is equipped with defrosting function).
(c). Assemble the rear trimming plate of left rearview mirror subassembly.
