P. 1448

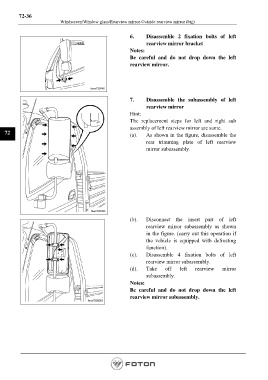

72-36
Windscreen/Window glass/Rearview mirror-Outside rearview mirror (big)
6. Disassemble 2 fixation bolts of left
rearview mirror bracket
Notes:
Be careful and do not drop down the left
rearview mirror.
7. Disassemble the subassembly of left
rearview mirror
Hint:
The replacement steps for left and right sub
assembly of left rearview mirror are same.
72 (a). As shown in the figure, disassemble the
rear trimming plate of left rearview
mirror subassembly.
(b). Disconnect the insert part of left
rearview mirror subassembly as shown
in the figure. (carry out this operation if
the vehicle is equipped with defrosting
function).
(c). Disassemble 4 fixation bolts of left
rearview mirror subassembly.
(d). Take off left rearview mirror
subassembly.
Notes:
Be careful and do not drop down the left
rearview mirror subassembly.
