P. 1443
72-31

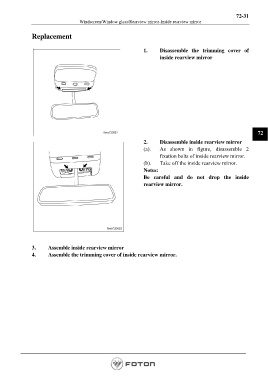

Windscreen/Window glass/Rearview mirror-Inside rearview mirror
Replacement
1. Disassemble the trimming cover of
inside rearview mirror
72
2. Disassemble inside rearview mirror
(a). As shown in figure, disassemble 2
fixation bolts of inside rearview mirror.
(b). Take off the inside rearview mirror.
Notes:
Be careful and do not drop the inside
rearview mirror.
3. Assemble inside rearview mirror
4. Assemble the trimming cover of inside rearview mirror.
