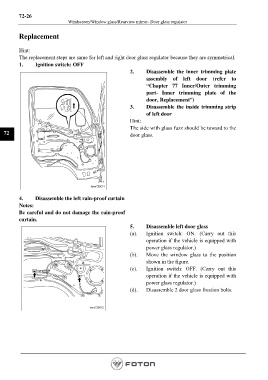

72-26
Windscreen/Window glass/Rearview mirror- Door glass regulator

Replacement

Hint:
The replacement steps are same for left and right door glass regulator because they are symmetrical.
1. Ignition switch: OFF
2. Disassemble the inner trimming plate
assembly of left door (refer to
“Chapter 77 Inner/Outer trimming
part- Inner trimming plate of the
door, Replacement”)
3. Disassemble the inside trimming strip
of left door
Hint:
The side with glass fuzz should be toward to the
72 door glass.

4. Disassemble the left rain-proof curtain
Notes:
Be careful and do not damage the rain-proof
curtain.
5. Disassemble left door glass
(a). Ignition switch: ON. (Carry out this
operation if the vehicle is equipped with
power glass regulator.)
(b). Move the window glass to the position
shown in the figure.
(c). Ignition switch: OFF. (Carry out this
operation if the vehicle is equipped with
power glass regulator.)
(d). Disassemble 2 door glass fixation bolts.
