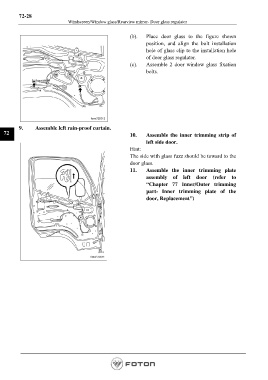

72-28
Windscreen/Window glass/Rearview mirror- Door glass regulator

(b). Place door glass to the figure shown
position, and align the bolt installation
hole of glass clip to the installation hole
of door glass regulator.
(c). Assemble 2 door window glass fixation
bolts.

9. Assemble left rain-proof curtain.
72 10. Assemble the inner trimming strip of
left side door.
Hint:
The side with glass fuzz should be toward to the
door glass.
11. Assemble the inner trimming plate
assembly of left door (refer to
“Chapter 77 Inner/Outer trimming
part- Inner trimming plate of the
door, Replacement”)
