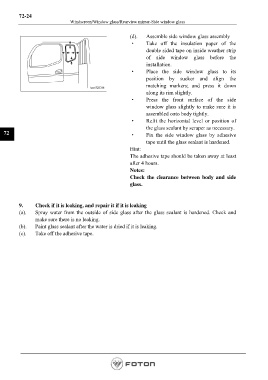

Page 1436 - Workshop Manual - Aumark (BJ1051)

72-24
Windscreen/Window glass/Rearview mirror-Side window glass

(d). Assemble side window glass assembly
· Take off the insulation paper of the
double sided tape on inside weather strip
of side window glass before the
installation.
· Place the side window glass to its
position by sucker and align the
matching markers; and press it down
along its rim slightly.

· Press the front surface of the side
window glass slightly to make sure it is
assembled onto body tightly.
· Refit the horizontal level or position of
the glass sealant by scraper as necessary.
72 · Fix the side window glass by adhesive
tape until the glass sealant is hardened.
Hint:
The adhesive tape should be taken away at least
after 4 hours.
Notes:
Check the clearance between body and side
glass.

9. Check if it is leaking, and repair it if it is leaking
(a). Spray water from the outside of side glass after the glass sealant is hardened. Check and
make sure there is no leaking.
(b). Paint glass sealant after the water is dried if it is leaking.
(c). Take off the adhesive tape.
